VACUUMGLASS®

VIG - Vacuum Insulating Glass


 The Ultimate Insulation Solution


There is no smarter choice for energy efficient buildings. Whether standalone monolithic VIG or Hybrid VIG Units, we can provide many value add options.

  • Various Low-E Coatings
  • Tinted or Low Iron Glass
  • Tempered, Heat Strengthened and Annealed Versions
  • Laminated VIG
  • Shapes
  • Bird Friendly Options
  • Dynamic Glazing VIG
  • BIPV-VIG
  • Bent VIG
  • Spandrel VIG




A Performance Breakthrough

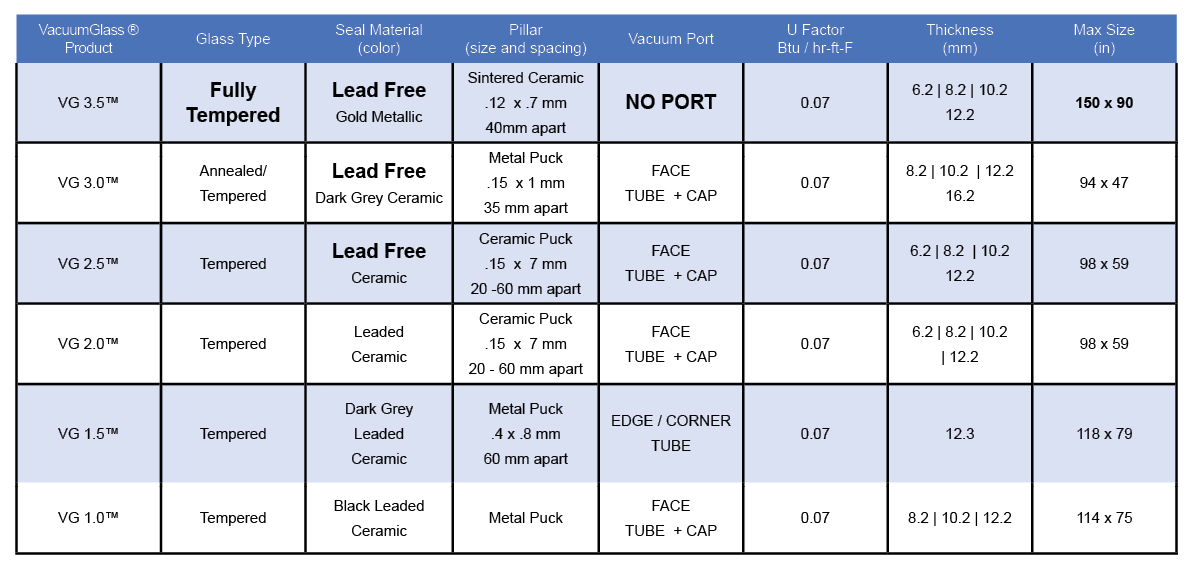

VG3.5™  World's most advanced Fully Tempered  VIG  is the latest generation with largest size (126” x 67”) available anywhere, from 6mm to 12 mm thick.  Featuring a proprietary low conductivity sintered ceramic pillar support array, superior NO PORT design and proprietary 3-part lead-free edge seal that has a projected 40+ year life expectancy.  Comes with a 15 year limited warranty that can be extended.


VG3.0™ A unique high-value VIG product with a corner face pump out port and cap, lead free ceramic edge seal and metal pillars.  Available from 8mm to 12mm in thicknesses, up to 98" x 60" size, with standard 20 year limited warranty.


VG2.5™ With a corner face pump out port and cap, lead free ceramic edge seal, ceramic pillar array, available from 8 to 12mm thick, up to 98" x 60" size and a 25 year limited warranty.


VG2.0™ Corner pump face out port and cap, leaded ceramic edge seal, ceramic pillar array, available from 8 to 12mm thick, up to 98" x 60" size and a 25 year limited warranty.


VG1.5™ An affordable choice at 6mm thick with corner edge "invisible" pump out port, leaded edge seal and metal pillar array.  Maximum size is 118" x 78" with a 10 year limited warranty.


VG1.0™  Even more affordable with great features like a NO PORT design.  Has leaded ceramic edge seal, from 8mm to 12 mm thick up to 98" x 60".  Ceramic pillar array and 10 year limited warranty.


VG0.5™  Our most economical choice; 8mm to 12 mm thick, leaded edge seal with  metal pillars up to 114" x 75" and 2 year limited warranty.


What is VIG?

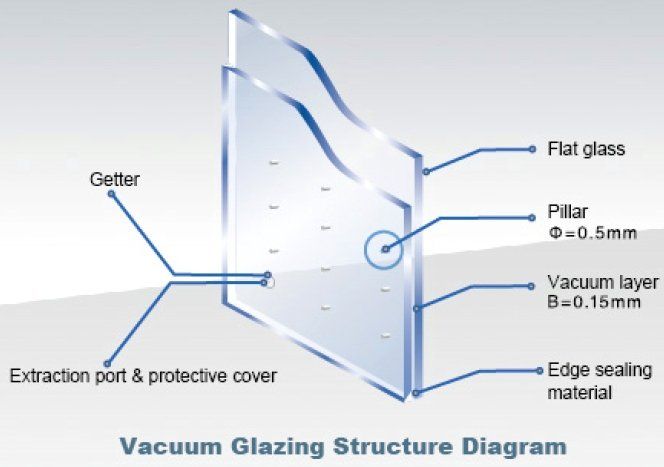

Vacuum Insulating Glass (VIG) is the highest performing glazing choice available today.  Standard double pane IG is R-3 to R-4 center of glass.  VIG is from R-10 to R-14, or up to 5X better.  It utilizes an evacuated cavity between two layers of glass to significantly reduce heat transfer and improve building energy efficiency. The edge seal creates a non-porous barrier locking out air to reduce heat transfer through conduction, convection and radiation - common in standard IG.  Thus, resulting in improved thermal insulation and lower energy costs.


Key features of VIG include:

  •        Improved thermal insulation: VIG has a U-value (a measure of thermal conductivity) that is significantly lower than traditional insulating glass, making it more effective at reducing heat loss and heat gain.
  •        Sound insulation: VIG can also improve sound insulation, making it ideal for use in buildings that are located in noisy areas.
  •        Durability: VIG is highly durable and can withstand extreme environmental fluctuations without degrading over time.
  •        Low maintenance: VIG requires no extra maintenance and will not need to be replaced as frequently as traditional insulating glass - which fails over time.



What makes VacuumGlass® VIG products different?

With exclusive agreements in place for the Americas, we have the widest range and largest volume of VIG product available in the world.  This is coupled with our flagship product, VG3.5™ - THE MOST ADVANCED VIG PRODUCT OFFERED ANYWHERE IN THE WORLD.
